Кабельные наконечники 290619-290720
Описание

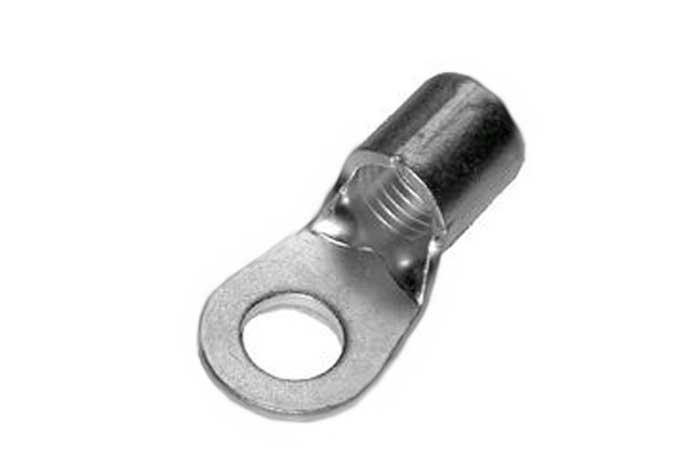

Кабельные наконечники кольцевые 290619-290720 предназначены для оконцевания опрессовкой многопроволочных медных проводов и последующего крепежа наконечников к клеммам электрического оборудования на основе винтовой фиксации.
Особенности
- Материал - 99,9% электролитная медь.
- Покрытие - гальваническое лужение.
| Артикул | Сечение, мм2 | Отверстие под болт | d1, мм | A, мм | B, мм | L, мм | Норма упаковки, шт |
| 290619 | 0,5-1,0 | М2,5 | 1,95 | 5,2 | 8,0 | 17,25 | 100 |
| 290620 | М3 | ||||||
| 290621 | М3,5 | ||||||
| 290622 | М4 | 16,65 | |||||
| 290624 | М5 | 17,25 | |||||
| 290623 | М6 | 10,0 | 18,5 | ||||
| 290625 | М8 | 14,0 | 25,0 | ||||
| 290617 | М10 | ||||||
| 290626 | 1,5-2,5 | М3 | 2,45 | 8,0 | 17,25 | ||
| 290627 | М3,5 | ||||||
| 290628 | М4 | ||||||
| 290630 | М5 | 10,0 | 20,0 | ||||
| 290632 | М6 | 11,0 | 22,0 | ||||
| 290634 | М8 | 15,0 | 26,8 | ||||
| 290635 | М10 | ||||||
| 290646 | 4,0-6,0 | М5 | 3,6 | 6,0 | 10,0 | 15,0 | |
| 290648 | М6 | 11,0 | 16,0 | ||||
| 290650 | М8 | 14,0 | 19,0 | ||||
| 290652 | М10 | 18,0 | 21,0 | ||||
| 290654 | М12 | ||||||
| 290656 | 10 | М5 | 4,5 | 8,0 | 10,0 | 16,0 | |
| 290658 | М6 | 11,0 | 17,0 | ||||
| 290660 | М8 | 14,0 | 20,0 | ||||
| 290662 | М10 | 18,0 | 21,0 | ||||
| 290663 | М12 | 22,0 | 23,0 | ||||
| 290664 | 16 | М5 | 5,8 | 10,0 | 10,0 | 20,0 | |
| 290666 | М6 | 11,0 | |||||
| 290668 | М8 | 14,0 | 22,0 | ||||
| 290670 | М10 | 18,0 | 24,0 | ||||
| 290672 | М12 | 22,0 | 26,0 | ||||
| 290676 | 25 | М6 | 7,5 | 11,0 | 12,0 | 25,0 | 50 |
| 290678 | М8 | 16,0 | |||||
| 290680 | М10 | 18,0 | 26,0 | ||||
| 290682 | М12 | 22,0 | 31,0 | ||||
| 290684 | М16 | 28,0 | 35,0 | ||||
| 290686 | 35 | М8 | 9,0 | 12,0 | 16,0 | 26,0 | |
| 290688 | М10 | 18,0 | 27,0 | ||||
| 290690 | М12 | 22,0 | 31,0 | ||||
| 290692 | М16 | 28,0 | 36,0 | ||||
| 290694 | 50 | М8 | 11,0 | 16,0 | 18,0 | 34,0 | 40 |
| 290696 | М10 | ||||||
| 290698 | М12 | 22,0 | 36,0 | ||||
| 290700 | М16 | 28,0 | 40,0 | 25 | |||
| 290701 | 70 | М8 | 13,0 | 18,0 | 22,0 | 38,0 | |
| 290702 | М10 | ||||||
| 290704 | М12 | 20 | |||||
| 290707 | 95 | М8 | 15,0 | 20,0 | 24,0 | 42,0 | |
| 290708 | М10 | ||||||
| 290710 | М12 | ||||||
| 290712 | М16 | 28,0 | 44,0 | ||||
| 290713 | 120 | М10 | 16,5 | 22,0 | 24,0 | 44,0 | 25 |
| 290714 | М12 | ||||||
| 290716 | М16 | 28,0 | 48,0 | ||||
| 290717 | М20 | 32,0 | 53,0 | ||||
| 290719 | 150 | М10 | 19,0 | 24,0 | 30,0 | 50,0 | |
| 290721 | М12 | ||||||
| 290718 | М16 | ||||||
| 290720 | 185 | М16 | 21,0 | 25,0 | 36,0 | 20 |
