Кабельные наконечники 290404-290522 (DIN 46235)

Цена по запросу
Под заказ
Доставка
Срок доставки от 3 до 30 дней

Описание

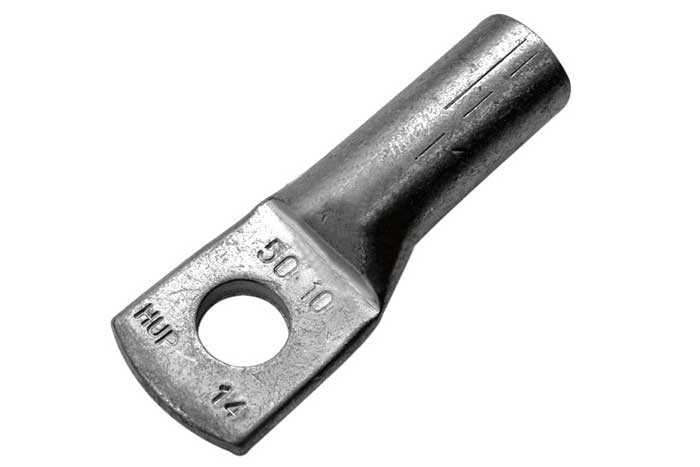

Кабельные наконечники 290404-290522 (DIN 46235) предназначены для оконцевания кабелей и проводов с медными жилами.

Особенности

  • Материал - 99,9% электролитическая медь.
  • Покрытие - гальваническое лужение.
Технические характеристики
Артикул Сечение, мм2 Отверстие под болт d1, мм d4, мм А, мм L, мм В, мм Норма упаковки, шт
290404 6 М6 3,8 5,5 10,0 24,0 8,5 100
290406 М8 24,0 13,0
290408 10 М5 4,5 6,0 27,0 9,0
290410 М6 27,0 9,0
290412 М8 27,0 13,0
290414 М10 28,0 15,0
290416 16 М6 5,5 8,5 20,0 36,0 13,0 50
290418 М8 36,0 13,0
290420 М10 36,0 17,0
290422 М12 36,0 18,0
290424 25 М6 7,0 10,0 38,0 14,0
290426 М8 38,0 16,0
290428 М10 38,0 17,0
290430 М12 38,0 19,0
290432 35 М6 8,2 12,5 42,0 17,0 25
290434 М8 42,0 17,0
290436 М10 42,0 19,0
290438 М12 42,0 21,0
290440 50 М8 10,0 14,5 28,0 52,0 20,0
290442 М10 52,0 22,0
290444 М12 52,0 24,0
290446 М16 52,0 28,0 20
290448 70 М8 11,5 16,5 55,0 24,0 25
290450 М10 55,0 24,0
290452 М12 55,0 24,0
290454 М16 55,0 30,0 20
290456 95 М10 13,5 19,0 35,0 65,0 28,0 15
290458 М12 65,0 28,0
290460 М16 65,0 32,0
290462 120 М10 15,5 21,0 70,0 32,0 20
290464 М12 70,0 32,0
290466 М16 70,0 32,0
290468 М20 70,0 38,0 15
290470 150 М10 17,0 23,5 78,0 34,0
290472 М12 78,0 34,0
290474 М16 78,0 34,0
290476 М20 78,0 40,0 25
290478 185 М10 19,0 25,5 40,0 82,0 37,0 10
290480 М12 82,0 37,0
290482 М16 82,0 37,0
290484 М20 82,0 40,0
290486 240 М12 21,5 29,0 92,0 42,0 8
290488 М16 92,0 42,0
290490 М20 92,0 45,0
290492 300 М16 24,5 32,0 50,0 100,0 46,0 5
290494 М20 100,0 46,0
290496 400 М16 27,5 38,5 70,0 115,0 54,0 3
290498 М20 115,0 54,0 1
290516 500 М20 31,0 42,0 125,0 60,0
290518 625 М20 34,5 44,0 80,0 125,0 64,0
290520 800 М20 40,0 52,0 100,0 165,5 75,0
290522 1000 М20 44,0 58,0 165,0 83,0
