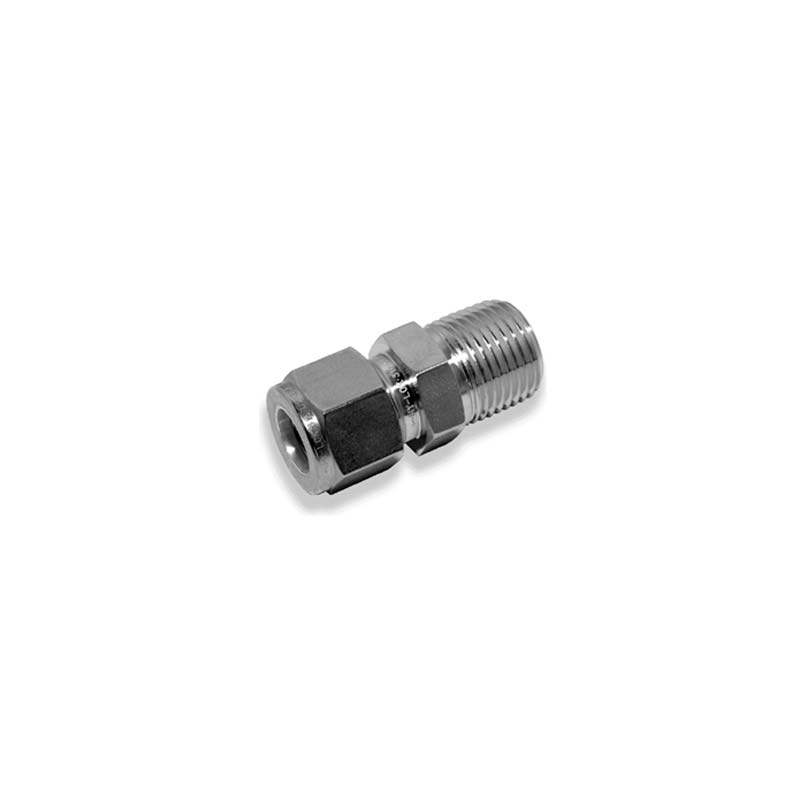

Штуцер CMC

Цена по запросу

Под заказ

zapros@amtorg.com.ru

Доставка

Срок доставки от 3 до 30 дней

Описание

Штуцер CMC применяется в пневматических и гидравлических системах для соединения дюймовых труб с внутренней NPT резьбой.

Характеристики

Параметры штуцера (метрическая трубка - резьба NPT (коническая))
Кодировка	Подсоединения		*S316	*STEL	*BRAS
CMC-3M-2N-*	Hy-Lok 3mm	NPT 1/8"		-	-
CMC-3M-4N-*	Hy-Lok 3mm	NPT 1/4"		-	-
CMC-3M-6N-*	Hy-Lok 3mm	NPT 3/8"		-	-
CMC-3M-8N-*	Hy-Lok 3mm	NPT 1/2"		-	-
CMC-4M-2N-*	Hy-Lok 4mm	NPT 1/8"		-	-
CMC-4M-4N-*	Hy-Lok 4mm	NPT 1/4"		-	-
CMC-6M-2N-*	Hy-Lok 6mm	NPT 1/8"		-	-
CMC-6M-4N-*	Hy-Lok 6mm	NPT 1/4"		-	-
CMC-6M-6N-*	Hy-Lok 6mm	NPT 3/8"		-	-
CMC-6M-8N-*	Hy-Lok 6mm	NPT 1/2"		-	-
CMC-6M-12N-*	Hy-Lok 6mm	NPT 3/4"		-	-
CMC-8M-2N-*	Hy-Lok 8mm	NPT 1/8"		-	-
CMC-8M-4N-*	Hy-Lok 8mm	NPT 1/4"		-	-
CMC-8M-6N-*	Hy-Lok 8mm	NPT 3/8"		-	-
CMC-8M-8N-*	Hy-Lok 8mm	NPT 1/2"		-	-
CMC-10M-2N-*	Hy-Lok 10mm	NPT 1/8"		-	-
CMC-10M-4N-*	Hy-Lok 10mm	NPT 1/4"		-	-
CMC-10M-6N-*	Hy-Lok 10mm	NPT 3/8"		-	-
CMC-10M-8N-*	Hy-Lok 10mm	NPT 1/2"		-	-
CMC-10M-12N-*	Hy-Lok 10mm	NPT 3/4"		-	-
CMC-12M-2N-*	Hy-Lok 12mm	NPT 1/8"		-	-
CMC-12M-4N-*	Hy-Lok 12mm	NPT 1/4"		-	-
CMC-12M-6N-*	Hy-Lok 12mm	NPT 3/8"		-	-
CMC-12M-8N-*	Hy-Lok 12mm	NPT 1/2"		-	-
CMC-12M-12N-*	Hy-Lok 12mm	NPT 3/4"		-	-
CMC-12M-16N-*	Hy-Lok 12mm	NPT 1"		-	-
CMC-14M-12N-*	Hy-Lok 14mm	NPT 3/4"		-	-
CMC-14M-8N-*	Hy-Lok 14mm	NPT 1/2"		-	-
CMC-14M-6N-*	Hy-Lok 14mm	NPT 3/8"		-	-
CMC-14M-4N-*	Hy-Lok 14mm	NPT 1/4"		-	-
CMC-14M-2N-*	Hy-Lok 14mm	NPT 1/8"		-	-
CMC-16M-6N-*	Hy-Lok 16mm	NPT 3/8"		-	-
CMC-16M-8N-*	Hy-Lok 16mm	NPT 1/2"		-	-
CMC-16M-12N-*	Hy-Lok 16mm	NPT 3/4"		-	-
CMC-20M-8N-*	Hy-Lok 20mm	NPT 1/2"		-	-
CMC-20M-12N-*	Hy-Lok 20mm	NPT 3/4"		-	-
CMC-20M-16N-*	Hy-Lok 20mm	NPT 1"		-	-
CMC-22M-12N-*	Hy-Lok 22mm	NPT 3/4"		-	-
CMC-22M-16N-*	Hy-Lok 22mm	NPT 1"		-	-
CMC-25M-8N-*	Hy-Lok 25mm	NPT 1/2"		-	-
CMC-25M-12N-*	Hy-Lok 25mm	NPT 3/4"		-	-
CMC-25M-16N-*	Hy-Lok 25mm	NPT 1"		-	-
CMC-32M-16N-*	Hy-Lok 32mm	NPT 1"		-	-
CMC-32M-20N-*	Hy-Lok 32mm	NPT 1 1/4"		-	-
CMC-32M-24N-*	Hy-Lok 32mm	NPT 1 1/2"		-	-
CMC-38M-24N-*	Hy-Lok 38mm	NPT 1 1/2"		-	-
CMC-50M-32N-*	Hy-Lok 50mm	NPT 2"		-	-

Параметры штуцера (метрическая трубка - резьба RT (коническая))
Кодировка	Подсоединения		*S316	*STEL	*BRAS
CMC-3M-2R-*	Hy-Lok 3mm	RT 1/8"		-	-
CMC-3M-4R-*	Hy-Lok 3mm	RT 1/4"		-	-
CMC-3M-6R-*	Hy-Lok 3mm	RT 3/8"		-	-
CMC-3M-8R-*	Hy-Lok 3mm	RT 1/2"		-	-
CMC-4M-2R-*	Hy-Lok 4mm	RT 1/8"		-	-
CMC-4M-4R-*	Hy-Lok 4mm	RT 1/4"		-	-
CMC-6M-2R-*	Hy-Lok 6mm	RT 1/8"		-	-
CMC-6M-4R-*	Hy-Lok 6mm	RT 1/4"		-	-
CMC-6M-6R-*	Hy-Lok 6mm	RT 3/8"		-	-
CMC-6M-8R-*	Hy-Lok 6mm	RT 1/2"		-	-
CMC-6M-12R-*	Hy-Lok 6mm	RT 3/4"		-	-
CMC-8M-2R-*	Hy-Lok 8mm	RT 1/8"		-	-
CMC-8M-4R-*	Hy-Lok 8mm	RT 1/4"		-	-
CMC-8M-6R-*	Hy-Lok 8mm	RT 3/8"		-	-
CMC-10M-2R-*	Hy-Lok 10mm	RT 1/8"		-	-
CMC-10M-4R-*	Hy-Lok 10mm	RT 1/4"		-	-
CMC-10M-6R-*	Hy-Lok 10mm	RT 3/8"		-	-
CMC-10M-8R-*	Hy-Lok 10mm	RT 1/2"		-	-
CMC-10M-12R-*	Hy-Lok 10mm	RT 3/4"		-	-
CMC-12M-2R-*	Hy-Lok 12mm	RT 1/8"		-	-
CMC-12M-4R-*	Hy-Lok 12mm	RT 1/4"		-	-
CMC-12M-6R-*	Hy-Lok 12mm	RT 3/8"		-	-
CMC-12M-8R-*	Hy-Lok 12mm	RT 1/2"		-	-
CMC-12M-12R-*	Hy-Lok 12mm	RT 3/4"		-	-
CMC-12M-16R-*	Hy-Lok 12mm	RT 1"		-	-
CMC-16M-6R-*	Hy-Lok 16mm	RT 3/8"		-	-
CMC-16M-8R-*	Hy-Lok 16mm	RT 1/2"		-	-
CMC-16M-12R-*	Hy-Lok 16mm	RT 3/4"		-	-
CMC-20M-8R-*	Hy-Lok 20mm	RT 1/2"		-	-
CMC-20M-12R-*	Hy-Lok 20mm	RT 3/4"		-	-
CMC-20M-16R-*	Hy-Lok 20mm	RT 1"		-	-
CMC-22M-12R-*	Hy-Lok 22mm	RT 3/4"		-	-
CMC-22M-16R-*	Hy-Lok 22mm	RT 1"		-	-
CMC-25M-8R-*	Hy-Lok 25mm	RT 1/2"		-	-
CMC-25M-12R-*	Hy-Lok 25mm	RT 3/4"		-	-
CMC-25M-16R-*	Hy-Lok 25mm	RT 1"		-	-
CMC-32M-16R-*	Hy-Lok 32mm	RT 1"		-	-
CMC-32M-20R-*	Hy-Lok 32mm	RT 1 1/4"		-	-
CMC-32M-24R-*	Hy-Lok 32mm	RT 1 1/2"		-	-
CMC-38M-24R-*	Hy-Lok 38mm	RT 1 1/2"		-	-
CMC-50M-32R-*	Hy-Lok 50mm	RT 2"		-	-

Параметры штуцера(метрическая трубка - резьба G (цилиндрическая))
Кодировка	Подсоединения		*S316	*STEL	*BRAS
CMC-3M-2G-*	Hy-Lok 3mm	G 1/8"		-	-
CMC-3M-4G-*	Hy-Lok 3mm	G 1/4"		-	-
CMC-3M-6G-*	Hy-Lok 3mm	G 3/8"		-	-
CMC-3M-8G-*	Hy-Lok 3mm	G 1/2"		-	-
CMC-4M-2G-*	Hy-Lok 4mm	G 1/8"		-	-
CMC-4M-4G-*	Hy-Lok 4mm	G 1/4"		-	-
CMC-6M-2G-*	Hy-Lok 6mm	G 1/8"		-	-
CMC-6M-4G-*	Hy-Lok 6mm	G 1/4"		-	-
CMC-6M-6G-*	Hy-Lok 6mm	G 3/8"		-	-
CMC-6M-8G-*	Hy-Lok 6mm	G 1/2"		-	-
CMC-6M-12G-*	Hy-Lok 6mm	G 3/4"		-	-
CMC-8M-2G-*	Hy-Lok 8mm	G 1/8"		-	-
CMC-8M-4G-*	Hy-Lok 8mm	G 1/4"		-	-
CMC-8M-6G-*	Hy-Lok 8mm	G 3/8"		-	-
CMC-8M-8G-*	Hy-Lok 8mm	G 1/2"		-	-
CMC-10M-2G-*	Hy-Lok 10mm	G 1/8"		-	-
CMC-10M-4G-*	Hy-Lok 10mm	G 1/4"		-	-
CMC-10M-6G-*	Hy-Lok 10mm	G 3/8"		-	-
CMC-10M-8G-*	Hy-Lok 10mm	G 1/2"		-	-
CMC-10M-12G-*	Hy-Lok 10mm	G 3/4"		-	-
CMC-12M-2G-*	Hy-Lok 12mm	G 1/8"		-	-
CMC-12M-4G-*	Hy-Lok 12mm	G 1/4"		-	-
CMC-12M-6G-*	Hy-Lok 12mm	G 3/8"		-	-
CMC-12M-8G-*	Hy-Lok 12mm	G 1/2"		-	-
CMC-12M-12G-*	Hy-Lok 12mm	G 3/4"		-	-
CMC-12M-16G-*	Hy-Lok 12mm	G 1"		-	-
CMC-14M-2G-*	Hy-Lok 14mm	G 1/8"		-	-
CMC-14M-4G-*	Hy-Lok 14mm	G 1/4"		-	-
CMC-14M-6G-*	Hy-Lok 14mm	G 3/8"		-	-
CMC-14M-8G-*	Hy-Lok 14mm	G 1/2"		-	-
CMC-14M-12G-*	Hy-Lok 14mm	G 3/4"		-	-
CMC-16M-6G-*	Hy-Lok 16mm	G 3/8"		-	-
CMC-16M-8G-*	Hy-Lok 16mm	G 1/2"		-	-
CMC-16M-12G-*	Hy-Lok 16mm	G 3/4"		-	-
CMC-20M-8G-*	Hy-Lok 20mm	G 1/2"		-	-
CMC-20M-12G-*	Hy-Lok 20mm	G 3/4"		-	-
CMC-20M-16G-*	Hy-Lok 20mm	G 1"		-	-
CMC-22M-12G-*	Hy-Lok 22mm	G 3/4"		-	-
CMC-22M-16G-*	Hy-Lok 22mm	G 1"		-	-
CMC-25M-8G-*	Hy-Lok 25mm	G 1/2"		-	-
CMC-25M-12G-*	Hy-Lok 25mm	G 3/4"		-	-
CMC-25M-16G-*	Hy-Lok 25mm	G 1"		-	-

Параметры штуцера (метрическая трубка - метрическая резьба (цилиндрическая))
Кодировка	Подсоединения		*S316	*STEL	*BRAS
CMC-6M-M10-*	Hy-Lok 6mm	M10x1		-	-
CMC-6M-M20-*	Hy-Lok 6mm	M20x1.5		-	-
CMC-8M-M12-*	Hy-Lok 8mm	M12x1.5		-	-
CMC-8M-M20-*	Hy-Lok 8mm	M20x1.5		-	-
CMC-10M-M16-*	Hy-Lok 10mm	M16x1.5		-	-
CMC-10M-M20-*	Hy-Lok 10mm	M20x1.5		-	-
CMC-12M-M16-*	Hy-Lok 12mm	M16x1.5		-	-
CMC-12M-M20-*	Hy-Lok 12mm	M20x1.5		-	-
CMC-14M-M20-*	Hy-Lok 14mm	M20x1.5		-	-
CMC-16M-M20-*	Hy-Lok 16mm	M20x1.5		-	-
CMC-18M-M20-*	Hy-Lok 18mm	M20x1.5		-	-

Параметры штуцера (дюймовая трубка - резьба NPT (коническая))
Кодировка	Подсоединения		*S316	*STEL	*BRAS
CMC-1-1N-*	Hy-Lok 1/16"	NPT 1/16"		-	-
CMC-1-2N-*	Hy-Lok 1/16"	NPT 1/8"		-	-
CMC-2-1N-*	Hy-Lok 1/8"	NPT 1/16"		-	-
CMC-2-2N-*	Hy-Lok 1/8"	NPT 1/8"		-	-
CMC-2-4N-*	Hy-Lok 1/8"	NPT 1/4"		-	-
CMC-2-6N-*	Hy-Lok 1/8"	NPT 3/8"		-	-
CMC-2-8N-*	Hy-Lok 1/8"	NPT 1/2"		-	-
CMC-3-2N-*	Hy-Lok 3/16"	NPT 1/8"		-	-
CMC-3-4N-*	Hy-Lok 3/16"	NPT 1/4"		-	-
CMC-4-1N-*	Hy-Lok 1/4"	NPT 1/16"		-	-
CMC-4-2N-*	Hy-Lok 1/4"	NPT 1/8"		-	-
CMC-4-4N-*	Hy-Lok 1/4"	NPT 1/4"		-	-
CMC-4-6N-*	Hy-Lok 1/4"	NPT 3/8"		-	-
CMC-4-8N-*	Hy-Lok 1/4"	NPT 1/2"		-	-
CMC-4-12N-*	Hy-Lok 1/4"	NPT 3/4"		-	-
CMC-5-2N-*	Hy-Lok 5/16"	NPT 1/8"		-	-
CMC-5-4N-*	Hy-Lok 5/16"	NPT 1/4"		-	-
CMC-5-6N-*	Hy-Lok 5/16"	NPT 3/8"		-	-
CMC-6-2N-*	Hy-Lok 3/8"	NPT 1/8"		-	-
CMC-6-4N-*	Hy-Lok 3/8"	NPT 1/4"		-	-
CMC-6-6N-*	Hy-Lok 3/8"	NPT 3/8"		-	-
CMC-6-8N-*	Hy-Lok 3/8"	NPT 1/2"		-	-
CMC-6-12N-*	Hy-Lok 3/8"	NPT 3/4"		-	-
CMC-8-2N-*	Hy-Lok 1/2"	NPT 1/8"		-	-
CMC-8-4N-*	Hy-Lok 1/2"	NPT 1/4"		-	-
CMC-8-6N-*	Hy-Lok 1/2"	NPT 3/8"		-	-
CMC-8-8N-*	Hy-Lok 1/2"	NPT 1/2"		-	-
CMC-8-12N-*	Hy-Lok 1/2"	NPT 3/4"		-	-
CMC-8-16N-*	Hy-Lok 1/2"	NPT 1"		-	-
CMC-10-6N-*	Hy-Lok 5/8"	NPT 3/8"		-	-
CMC-10-8N-*	Hy-Lok 5/8"	NPT 1/2"		-	-
CMC-10-12N-*	Hy-Lok 5/8"	NPT 3/4"		-	-
CMC-12-8N-*	Hy-Lok 3/4"	NPT 1/2"		-	-
CMC-12-12N-*	Hy-Lok 3/4"	NPT 3/4"		-	-
CMC-12-16N-*	Hy-Lok 3/4"	NPT 1"		-	-
CMC-14-12N-*	Hy-Lok 7/8"	NPT 3/4"		-	-
CMC-14-16N-*	Hy-Lok 7/8"	NPT 1"		-	-
CMC-16-8N-*	Hy-Lok 1"	NPT 1/2"		-	-
CMC-16-12N-*	Hy-Lok 1"	NPT 3/4"		-	-
CMC-16-16N-*	Hy-Lok 1"	NPT 1"		-	-
CMC-20-16N-*	Hy-Lok 1 1/4"	NPT 1"		-	-
CMC-20-20N-*	Hy-Lok 1 1/4"	NPT 1 1/4"		-	-
CMC-20-24N-*	Hy-Lok 1 1/4"	NPT 1 1/2"		-	-
CMC-24-24N-*	Hy-Lok 1 1/2"	NPT 1 1/2"		-	-
CMC-32-32N-*	Hy-Lok 2"	NPT 2"		-	-

Параметры штуцера (дюймовая трубка - резьба RT (коническая))
Кодировка	Подсоединения		*S316	*STEL	*BRAS
CMC-1-1R-*	Hy-Lok 1/16"	RT 1/16"
CMC-1-2R-*	Hy-Lok 1/16"	RT 1/8"
CMC-2-1R-*	Hy-Lok 1/8"	RT 1/16"
CMC-2-2R-*	Hy-Lok 1/8"	RT 1/8"
CMC-2-4R-*	Hy-Lok 1/8"	RT 1/4"
CMC-2-6R-*	Hy-Lok 1/8"	RT 3/8"
CMC-2-8R-*	Hy-Lok 1/8"	RT 1/2"
CMC-3-2R-*	Hy-Lok 3/16"	RT 1/8"
CMC-3-4R-*	Hy-Lok 3/16"	RT 1/4"
CMC-4-12R-*	Hy-Lok 1/4"	RT 3/4"
CMC-4-1R-*	Hy-Lok 1/4"	RT 1/16"
CMC-4-2R-*	Hy-Lok 1/4"	RT 1/8"
CMC-4-4R-*	Hy-Lok 1/4"	RT 1/4"
CMC-4-6R-*	Hy-Lok 1/4"	RT 3/8"
CMC-4-8R-*	Hy-Lok 1/4"	RT 1/2"
CMC-5-2R-*	Hy-Lok 5/16"	RT 1/8"
CMC-5-4R-*	Hy-Lok 5/16"	RT 1/4"
CMC-5-6R-*	Hy-Lok 5/16"	RT 3/8"
CMC-6-12R-*	Hy-Lok 3/8"	RT 3/4"
CMC-6-2R-*	Hy-Lok 3/8"	RT 1/8"
CMC-6-4R-*	Hy-Lok 3/8"	RT 1/4"
CMC-6-6R-*	Hy-Lok 3/8"	RT 3/8"
CMC-6-8R-*	Hy-Lok 3/8"	RT 1/2"
CMC-8-12R-*	Hy-Lok 1/2"	RT 3/4"
CMC-8-16R-*	Hy-Lok 1/2"	RT 1"
CMC-8-2R-*	Hy-Lok 1/2"	RT 1/8"
CMC-8-4R-*	Hy-Lok 1/2"	RT 1/4"
CMC-8-6R-*	Hy-Lok 1/2"	RT 3/8"
CMC-8-8R-*	Hy-Lok 1/2"	RT 1/2"
CMC-10-6R-*	Hy-Lok 5/8"	RT 3/8"
CMC-10-8R-*	Hy-Lok 5/8"	RT 1/2"
CMC-10-12R-*	Hy-Lok 5/8"	RT 3/4"
CMC-12-8R-*	Hy-Lok 3/4"	RT 1/2"
CMC-12-12R-*	Hy-Lok 3/4"	RT 3/4"
CMC-12-16R-*	Hy-Lok 3/4"	RT 1"
CMC-14-12R-*	Hy-Lok 7/8"	RT 3/4"
CMC-14-16R-*	Hy-Lok 7/8"	RT 1"
CMC-16-8R-*	Hy-Lok 1"	RT 1/2"
CMC-16-12R-*	Hy-Lok 1"	RT 3/4"
CMC-16-16R-*	Hy-Lok 1"	RT 1"
CMC-20-16R-*	Hy-Lok 1 1/4"	RT 1"
CMC-20-20R-*	Hy-Lok 1 1/4"	RT 1 1/4"
CMC-20-24R-*	Hy-Lok 1 1/4"	RT 1 1/2"
CMC-24-24R-*	Hy-Lok 1 1/2"	RT 1 1/2"
CMC-32-32R-*	Hy-Lok 2"	RT 2"

Параметры штуцера (дюймовая трубка - резьба G (цилиндрическая))
Кодировка	Подсоединения		*S316	*STEL	*BRAS
CMC-1-1G-*	Hy-Lok 1/16"	G 1/16"		-	-
CMC-1-2G-*	Hy-Lok 1/16"	G 1/8"		-	-
CMC-2-1G-*	Hy-Lok 1/8"	G 1/16"		-	-
CMC-2-2G-*	Hy-Lok 1/8"	G 1/8"		-	-
CMC-2-4G-*	Hy-Lok 1/8"	G 1/4"		-	-
CMC-2-6G-*	Hy-Lok 1/8"	G 3/8"		-	-
CMC-2-8G-*	Hy-Lok 1/8"	G 1/2"		-	-
CMC-3-2G-*	Hy-Lok 3/16"	G 1/8"		-	-
CMC-3-4G-*	Hy-Lok 3/16"	G 1/4"		-	-
CMC-4-1G-*	Hy-Lok 1/4"	G 1/2"		-	-
CMC-4-2G-*	Hy-Lok 1/4"	G 1/8"		-	-
CMC-4-4G-*	Hy-Lok 1/4"	G 1/4"		-	-
CMC-4-6G-*	Hy-Lok 1/4"	G 3/8"		-	-
CMC-4-8G-*	Hy-Lok 1/4"	G 1/2"		-	-
CMC-4-12G-*	Hy-Lok 1/4"	G 3/4"		-	-
CMC-5-2G-*	Hy-Lok 5/16"	G 1/8"		-	-
CMC-5-4G-*	Hy-Lok 5/16"	G 1/4"		-	-
CMC-5-6G-*	Hy-Lok 5/16"	G 3/8"		-	-
CMC-6-2G-*	Hy-Lok 3/8"	G 1/8"		-	-
CMC-6-4G-*	Hy-Lok 3/8"	G 1/4"		-	-
CMC-6-6G-*	Hy-Lok 3/8"	G 3/8"		-	-
CMC-6-8G-*	Hy-Lok 3/8"	G 1/2"		-	-
CMC-6-12G-*	Hy-Lok 3/8"	G 3/4"		-	-
CMC-8-2G-*	Hy-Lok 1/2"	G 1/8"		-	-
CMC-8-4G-*	Hy-Lok 1/2"	G 1/4"		-	-
CMC-8-6G-*	Hy-Lok 1/2"	G 3/8"		-	-
CMC-8-8G-*	Hy-Lok 1/2"	G 1/2"		-	-
CMC-8-12G-*	Hy-Lok 1/2"	G 3/8"		-	-
CMC-8-16G-*	Hy-Lok 1/2"	G 1"		-	-
CMC-10-6G-*	Hy-Lok 5/8"	G 3/8"		-	-
CMC-10-8G-*	Hy-Lok 5/8"	G 1/2"		-	-
CMC-10-12G-*	Hy-Lok 5/8"	G 3/4"		-	-
CMC-12-8G-*	Hy-Lok 3/4"	G 1/2"		-	-
CMC-12-12G-*	Hy-Lok 3/4"	G 3/4"		-	-
CMC-12-16G-*	Hy-Lok 3/4"	G 1"		-	-
CMC-14-12G-*	Hy-Lok 7/8"	G 3/4"		-	-
CMC-14-16G-*	Hy-Lok 7/8"	G 1"		-	-
CMC-16-8G-*	Hy-Lok 1/16"	G 1/2"		-	-
CMC-16-12G-*	Hy-Lok 1/16"	G 3/4"		-	-
CMC-16-16G-*	Hy-Lok 1"	G 1"		-	-
